Patent-pending in Canada and USA

AmpreyTM

Amprey’s electrochemical cell produces all chemistries that exist to alter pH, create reducing conditions, and remove any dissolved metal

banner-AmpreyTM

Patented in Canada and USA

MistyTM

Scrubs O2 gas for positive redox
Scrubs CO2 gas to neutralize pH
Strips ammonia

banner-MistyTM

Patented in Canada and USA

MikroFormeTM

Micro-bubble flotation / gas contactor
Separates solids + gas transfer

banner-MikroFormeTM
Game-ChangingTechnology





Learn More in Our Presentation

AmpreyTM

Game-Changing Technology
(Patent-Pending)



What it does

blue-waterDroplets

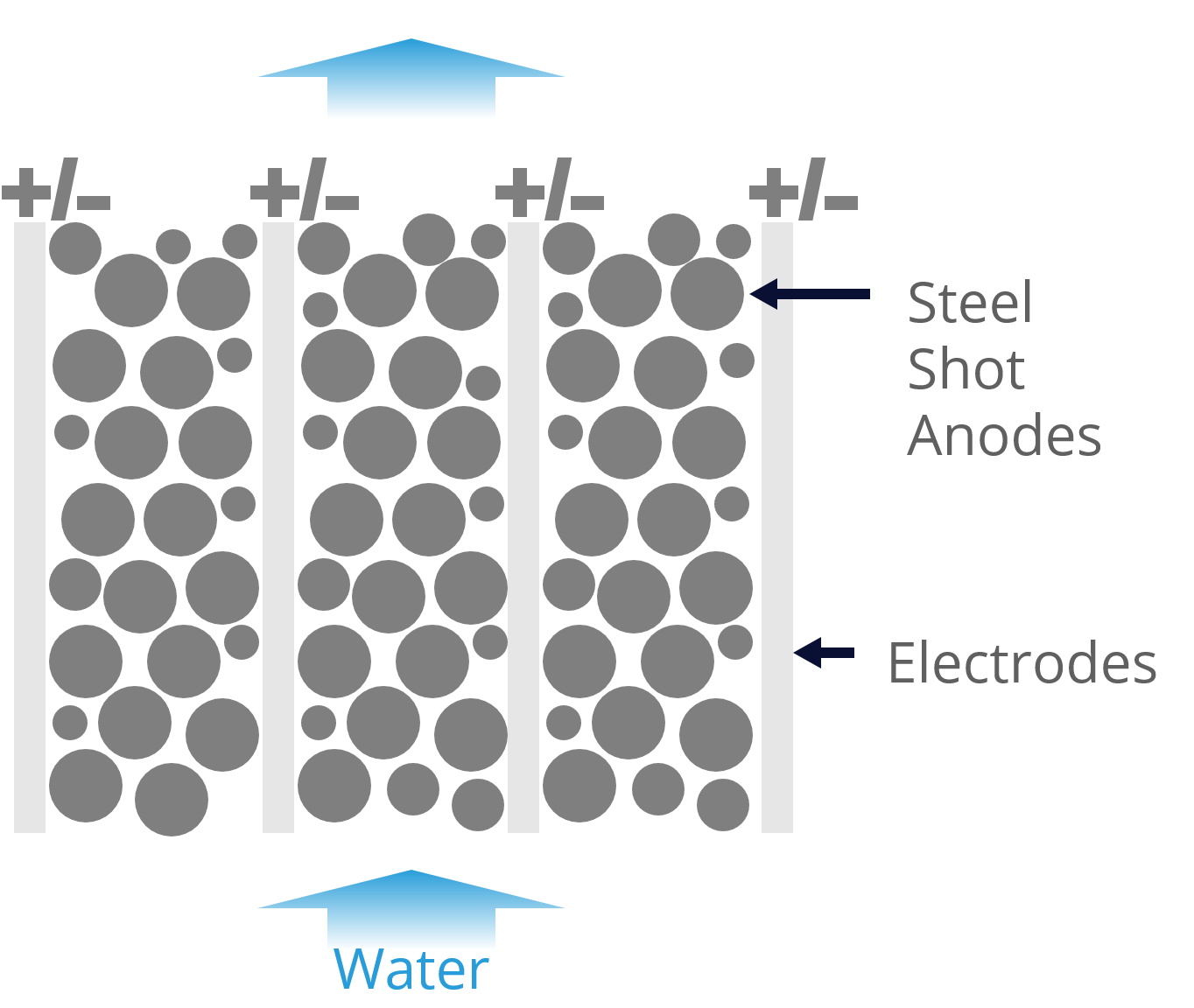

Electrically activated metal pellet anode up-flow packed bed

blue-waterDroplets

Removes dissolved metals and contaminants quickly

blue-waterDroplets

Uses commodity anode pellets: aluminum, steel, magnesium


Misty CO2TM

Carbon Capture & Utilization Technology (Patented)



What it does

blue-waterDroplets

Captures exhaust from diesel or natural gas generators

blue-waterDroplets

Neutralizes pH rapidly

blue-waterDroplets

Replaces use of expensive and hazardous concentrated acid

blue-waterDroplets

Saves money

blue-waterDroplets

Generates carbon credits





waterStrider's Spectacular Treatment Results

Can Remove Any Dissolved Metal from Water and Sulphate and Nitrate - some examples from various mines in Canada and USA:



 Contaminant  Untreated Water
(parts per billion)		  Permit Maxium (1)
(parts per billion)		  After Treatment (2)
(parts per billion)		  % Removal
 Aluminum 779,719 62 25 >99.9
 Arsenic 4,010 50  17.8  99.6
 Cadmium 4 0.02  <0.01  >99.9
 Cobalt 4,489 4.4 1.82 >99.9
Copper 19,148 18 <2 > 99.9
Iron 661,994 350 <50 >99.9
Lead 969 12 <1 >99.9
 Lithium 33,900 - 29.6  99.9
Nickel 4,799 60 8.3 99.8
Selenium 658 5 3.32 99.5
Uranium 5,529 5,300 207 96.3
Zinc 549,000 30 <20 >99.9
Sulphate 1,486,000 1,600,000 364,000 75.5
Nitrate 5,930 10,000 1,260 78.8

(1) Per BC Water Quality Guidelines for Fresh Water Aquatic Life or individual mine permit

(2) Testing performed at 3rd party independent labs

By-Product is Stable and Non-Leachable

Major Benefits Over Other Water Treatment Methods



Game-ChangingTechnology
blue-waterDroplets

90% less solids for disposal vs. lime

blue-waterDroplets

Easily dewatered

blue-waterDroplets

Chemically stable (non-leachable)

blue-waterDroplets

Increases potential for metals recovery

 Metal  BC Limit (1)
(mg/L)		  waterStrider Results
(mg/L)		  Below Limit %
Arsenic 2.5 <0.010 99.6
Barium 100 <1.0 99.0
Boron 500 <0.50 99.9
Cadmium 0.5 <0.001 99.8
Chromium 5 <0.050 99.0
Copper 100 <0.10 99.9
Lead 5 <0.010 99.8
Mercury 0.1 <0.002 98.0
Nickel 500 <0.10 100.0
Selenium 1 <0.020 98.0
Silver 5 <0.002 100.0
Uranium 10 <0.020 99.8
Zinc 500 <0.50 99.9

(1) BC Hazardous Waste Legislation & Regulations Leachate Quality Standards Concentration in Waste Extract

(2) Results from standard regulated TCLP tests performed at 3rd party independent lab

EnvironmentalImpacts

waterStrider’s Advantages

  • Major operational, environmental and cost benefits over conventional systems
  • Small, modular and scalable
  • Fully-equipped pilot facility in Vancouver, BC
  • Lack of competition with novel, viable and cost-effective technologies

Examples of Very Large Mines in Canada with Water Treatment Needs

NWT, Canada

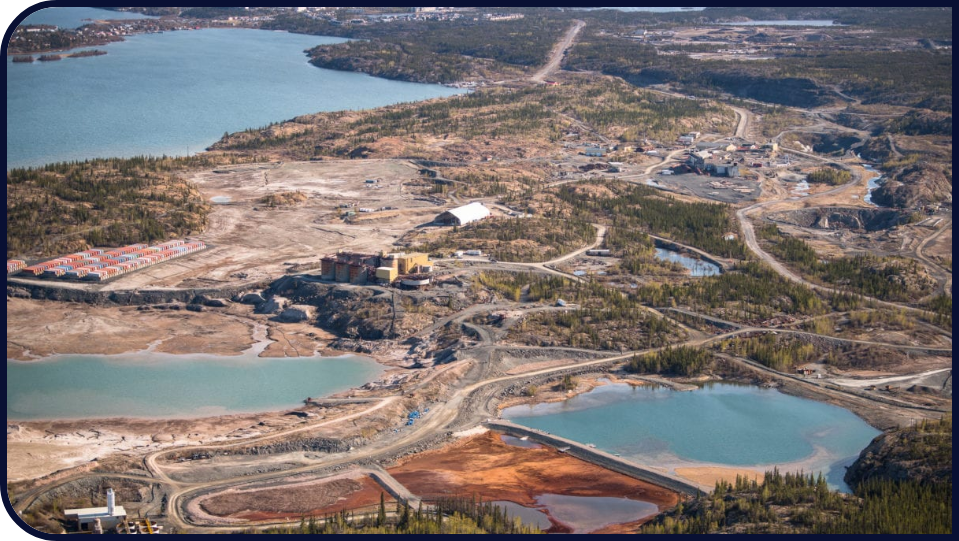

Giant Mine



  • Massive volumes: arsenic, acid
  • waterStrider beats all other systems - removed 99.6% arsenic
  • Remediation costs estimated $4.4 billion
  • Existing iron + lime water treatment does not work when freezing (~8 months per year)
GiantMine
FaroMine

Yukon, Canada

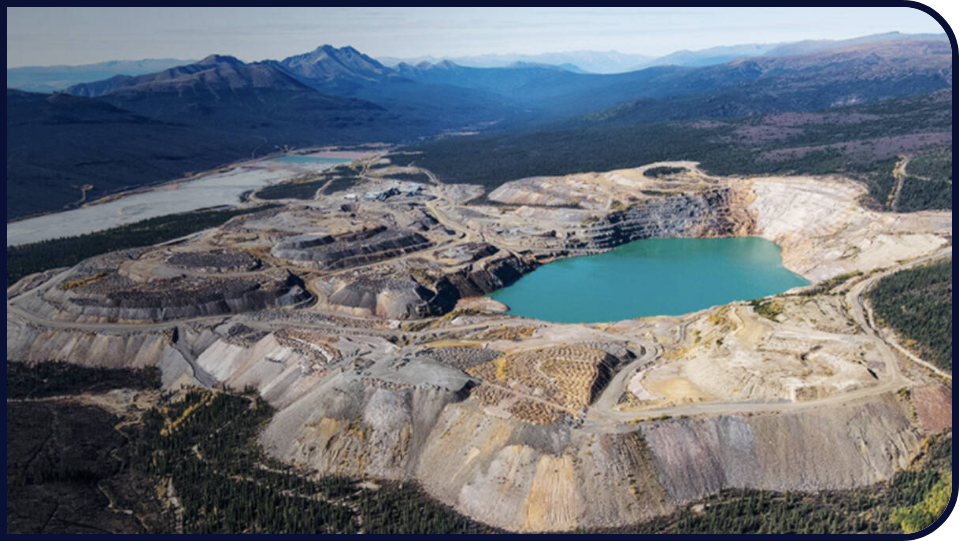

Faro Mine



  • Massive volumes: zinc, lead, acid
  • waterStrider beats all other systems - removed 99.9% zinc, 99.9% lead
  • Remediation costs estimated $2 billion
  • Existing lime water treatment does not work when freezing (~8 months per year)

BC, Canada

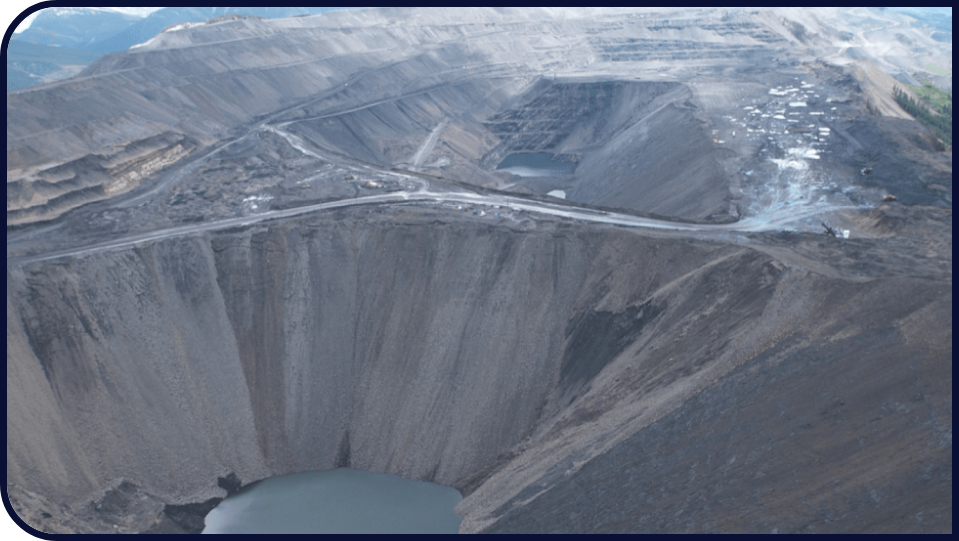

An Active Coal Mine



  • Massive volumes: selenium, acid
  • waterStrider beats all other systems - removed 99.5% selenium
  • Existing microbial water treatment cost over $600 million
  • Same selenium problems across all coal mines in Western Canada
CoalMine
